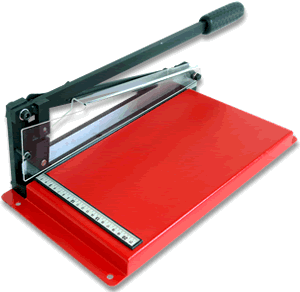

The PCB-cutter is
a cost effective shear which has the ability to
accurately cut PCB laminates, plastics and sheet-metal.
It’s accurate High Speed Steel blades are
hardened and ground. An important feature of this
shear is safety. Free access to the cutting area
is prevented by heavy Perspex shielding extending
along both sides of the blade. A safety latch
is fitted to the pivot to prevent operation without
it first being released. For positional accuracy
the cutting bed is fitted with a rule which is
recessed to assist in securing the PCB or sheeting
whilst cutting is in progress. |
|
|
|
|
Maximum
material thickness |
PCB laminates, plastics |
2,0
mm |
Aluminium |
1,5
mm |
Brass |
1 mm |
Max. cutting length
|
305 mm
|
Measurements L x W x H
|
440 x 245 x 670 mm
|
|
|
|
|
|
|
 |
Profiform
PCB-Cutter (Item Nr. 113500) |
Standard
equipment |
Complete, with Perspex
safety guard |
PCB-Cutter
|
Item
Nr. 113500 |
|
|
